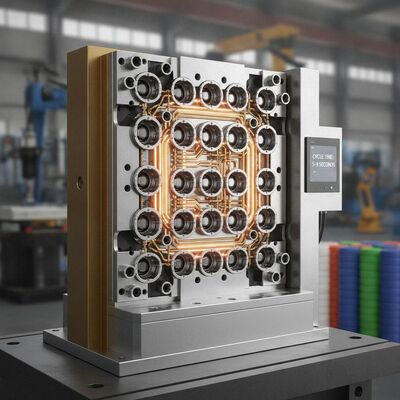

High Speed 48 Cavity Hot Runner Bottle Cap Injection Mold with 5-8 Seconds Cycle Time for Beverage Closures

  • High Speed 48 Cavity Hot Runner Bottle Cap Injection Mold with 5-8 Seconds Cycle Time for Beverage Closures
Lugar de origem Xiamen, Fujian, China
Marca Creator
Certificação ISO 9001:2015
Número do modelo KD-CAP-001
Quantidade de ordem mínima 100 peças
Preço negotiable
Detalhes da embalagem Caixa de exportação com saco PE, paletizada para remessa de contêineres
Tempo de entrega 25-35 dias úteis para molde novo, 7-15 dias para produção
Termos de pagamento T/T, L/C, PayPal, Western Union
Habilidade da fonte 100.000 peças por mês
Detalhes do produto
Cavidade 24-72 Cavidade Tempo de ciclo 5-8 segundos
Padrão CPO 1881/1810
Destacar

48 Cavity Injection Mold

,

Hot Runner Bottle Cap Mold

,

5-8 Seconds Cycle Time Closure Mold
Deixe um recado
Descrição de produto

High Speed Multi Cavity Plastic Bottle Cap Injection Mold 48 Cavity Hot Runner for Beverage Water Closure

Manufacturing high-speed multi-cavity injection molds for beverage and water bottle closures, Xiamen Creator Technology Co., Ltd. delivers 24 to 72 cavity hot runner molds producing 38mm and 48mm neck finish caps at cycle times of 5-8 seconds. Our molds are engineered for 24/7 continuous production in high-output bottling line supply chains.

Key Features & Advantages

  • 24 to 72 cavity hot runner injection molds for bottle caps
  • Cycle time optimized: 5-8 seconds per shot
  • 38mm, 48mm, and custom neck finish compatibility
  • Tamper-evident band and tear-off strip design integration
  • PCO 1881, PCO 1810, and custom standard compliance
  • Quick-change unscrewing mechanism for cap thread demolding

Technical Specifications

ProductBottle Cap / Closure Injection Mold
Cavity24 / 32 / 48 / 64 / 72 Cavity
RunnerHot Runner with Valve Gate
Cycle Time5-8 seconds
MaterialPP (Polypropylene), HDPE
Neck Size28mm, 30mm, 38mm, 48mm
Cap TypeTamper-Evident, Sports Cap, Flip Top
OutputUp to 30,000 caps per hour (72 cavity)

Manufacturing Excellence

Since 2007, we have developed specialized expertise in high-speed cap and closure molds. Our closure mold department uses advanced unscrewing mechanisms, precision-machined thread cores, and balanced hot runner systems to achieve the fast cycle times and consistent quality required by the beverage packaging industry. Each mold undergoes 8-hour continuous trial runs before shipment.

Frequently Asked Questions

Q: What is the maximum cavity count for cap molds?

A: We manufacture cap molds up to 72 cavities, achieving cycle times of 5-8 seconds for high-speed beverage closure production.

Q: Do you comply with PCO closure standards?

A: Yes. Our molds produce caps compliant with PCO 1881 and PCO 1810 standards, as well as custom closure specifications.

Q: What demolding mechanism do you use?

A: We use precision unscrewing mechanisms with servo or hydraulic drive for cap thread demolding, ensuring consistent thread quality at high cycle speeds.

Q: How do you ensure cap seal quality?

A: We use precision-machined core and cavity alignment with tight tolerances on seal plug dimensions. Each mold is tested for seal integrity during our 8-hour trial run.
